This introduction will take you through every step involved in the integration and use of third-party mail servers.
- Why would I want to integrate a third-party mail server?
- What mail servers can be integrated?
- How can I integrate a mail server with CanIPhish?
- Which IP address does CanIPhish connect from?
1. Why would I want to integrate a third-party mail server?
There are a variety of reasons why you may want to use your own mail server for the delivery of phishing simulations. Firstly, you may decide that the use of your own mail servers will reduce the complexity of email allowlisting, you may want to use your own sender domains or you may want more control over the delivery process, with the ability to insert your own mail headers and so on.
2. What mail servers can be integrated?
Any mail server that can accept inbound emails over TCP port 587 with username and password authentication can be integrated. This includes all major mail delivery services including Amazon SES, SMTP2GO, Mailgun, Mailjet, etc.
3. How can I integrate a mail server with CanIPhish?
1. Login to your CanIPhish Tenant by clicking here - https://caniphish.com/Auth/Login

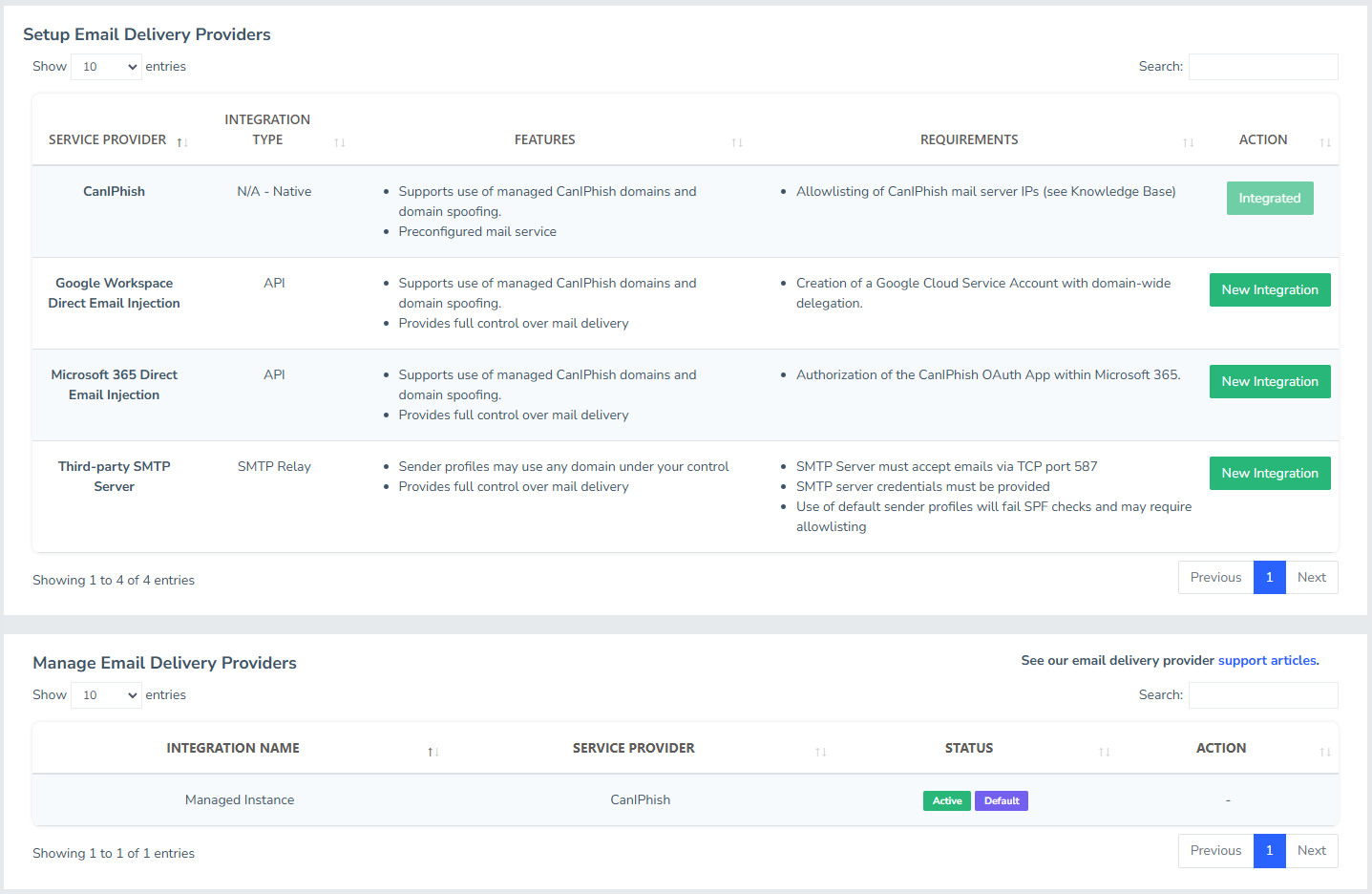

2. Traverse to the Mail Server Integrations page by clicking on the Platform Settings > Email Delivery Settings

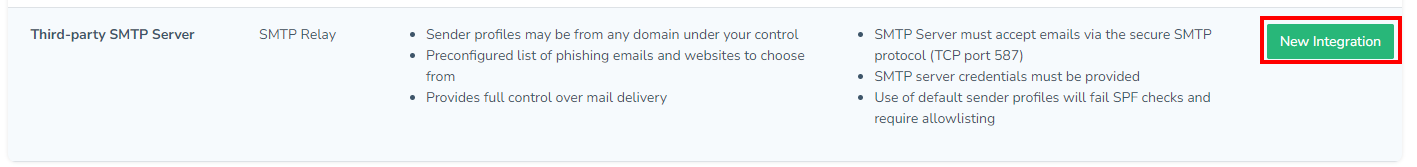

3. Click New Email Provider, then select Third-Party SMTP Server.

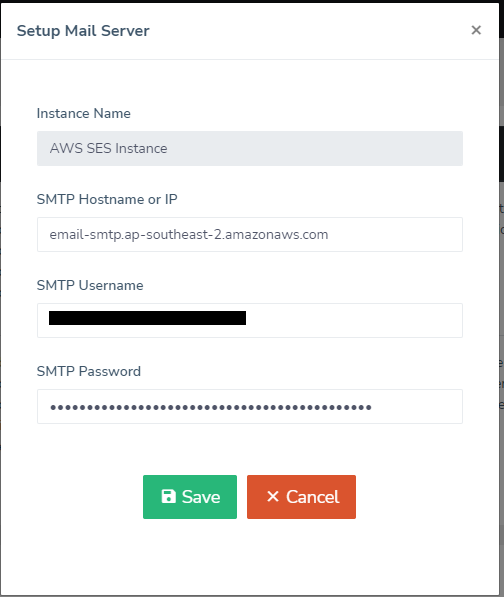

4. Input an Instance Name that this Mail Server will appear as across your tenant. Then proceed to input the SMTP Server Hostname or IP, Username and Password fields. E.g. the below integration is with Amazon SES:
5. Press Save and you're all done!
Note: When using your own Mail Server you can also use your own Sender Domains. To implement this functionality, checkout our Sender Profiles Introduction article.
4. Which IP address does CanIPhish connect from?
CanIPhish connects to your mail server from 3.104.245.84 (use 3.104.245.84/32 if a subnet mask is needed). If your mail server, or the email security gateway in front of it, only accepts connections from approved IP addresses, add this address. Phishing simulations, test emails sent from the campaign builder and replies in AI conversation simulations all come from it.
CanIPhish's own mail servers still send training notifications and other platform emails, so keep the Mail Server IPv4 Addresses in our Allowlisting Quick Reference allowlisted too. If you use Mimecast, our Mimecast Allowlisting Guide explains which addresses go in each policy.
Once your allowlisting is in place, send a small test campaign through the mail server to confirm emails arrive as expected.
